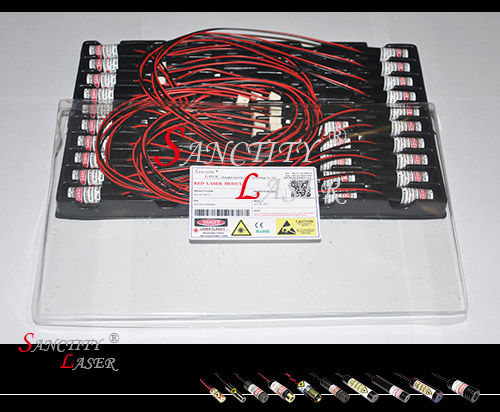

A Laser Modules Show |
| |

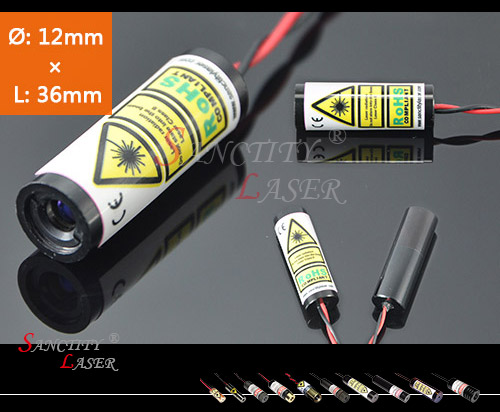

LASER MODULE is a simple laser, made by [ Laser Diode ] [ Optical Lens ] and [ Laser Crystal ]. Features is compactness size, high stability, various output modes [ Dot, Line and Cross Line Output ], drive by direct current power supply, low operation LD current and low cost, widely used to laser technologies domain. |
| |
SANCTITY LASER provide Industry Laser Modules, wavelengths of 400nm to 1064nm, we encapsulation the chip to laser diode, design best laser Printed Circuit Board and power supply by ourself, customer can point the modules output power since 0.1mW to hundreds of milliwatt, laser safe grade accord with I to IV levels, modules can keep the power stability of any output power. |
| |
Products have Electrode Reverse Protection, Electrostatic Protection, broad drive voltages and all material accord with ROHS, can keep the laser modules working of longtime and diode of long lifetime, we can make 30000 - 50000pcs laser modules, standard products repair rate < 2‰, and we will keep improve the products quality, welcome dear customers try to our products. |
| |
If our standard products can not meet your requirements, please contact to our sales engineer, we will accord with your requirements to design and make products. |
| |
| |
 |
|
 |
|
 |
 |
| 5g |
|
8g |
|
9g |
 |
 |
|
 |
|
 |
|
| 9g |
|
6g |
|
5g |
|
 |
|
 |
|
 |
|
| 7g |
|
10g |
|
15g |
|
 |
|
 |
|
 |
|
| 6g |
|
10g |
|
20g |
|
 |
|
 |
|
 |
|
| 25g |
|
28g |
|
30g |
| |
| Module Connector Types |
| |
 |
|
| |
| MOLEX |
| 2Pin 5057-9402 |
| |
| |
| |
| |
| Dupont |
| 2.5W 2Pin 2500-02 |
| |
| |
| |
| |
| |
| DC |
| 5.5mm×2.1mm |
| |
| |
| |
| |
| |
 |
|
 |
|
 |
|
 |
 |
 |
|
| LASER SAFE CLASS OF I, II, IIa, IIa, IIIb, IV AVAILABLE |
| |
|
| PRODUCTS CODE EXPLAIN |
| |
 |
|
MODEL : |
SSL - LM - 405 - XXX - D |
 |
| |
|
| |
SSL : |
Shanghai Sanctity Laser |
| |
|
|
| |
405 : |
Laser wavelength of 405nm |
| |
001 : |
Laser output power of "milli watt" 001 = 1mW 100 = 100mW |
| |
|
|
| |
D : |
D : Dot Output |
L : Line Output |
C : Cross Line Output |
| |
|
|
|
| |
P/N : |
Every laser products have a exclusive 8bit numbers |
| Laser Modules Index |
| Wavelength [ nm ] |
405 |
445 |
473 |
520 |
532 |
635 |
| Output Power [ mW ] |
0.1 - 150 |
0.1 - 150 |
0.4 - 30 |
0.1 - 100 |
0.1 - 150 |
0.1 - 60 |
| Laser Type |
DIODE |
DIODE |
DPSS |
DIODE |
DPSS |
DIODE |
| Link |
 |
 |
|
 |
|
 |
| |
| Wavelength [ nm ] |
650 |
660 |
670 |
780 |
808 |
830 |
| Output Power [ mW ] |
0.1 - 200 |
0.1 - 200 |
0.1 - 20 |
0.1 - 200 |
0.1 - 5000 |
0.1 - 200 |
| Laser Type |
DIODE |
DIODE |
DIODE |
DIODE |
DIODE |
DIODE |
| Link |
|
|
|
 |
|
|
| |
| Wavelength [ nm ] |
850 |
980 |
1064 |
- |
- |
- |
| Output Power [ mW ] |
0.1 - 200 |
0.1 - 4000 |
0.1 - 500 |
- |
- |
- |
| Laser Type |
DIODE |
DIODE |
DPSS |
- |
- |
- |
