556nm GREEN DPSS LASERS


Applications

Laser Display Laser Light Show
Collimating Communication
Laser Sources Industrial Equipment
Medical Equipment Laser Printing
Optical Instruments Scientific Research

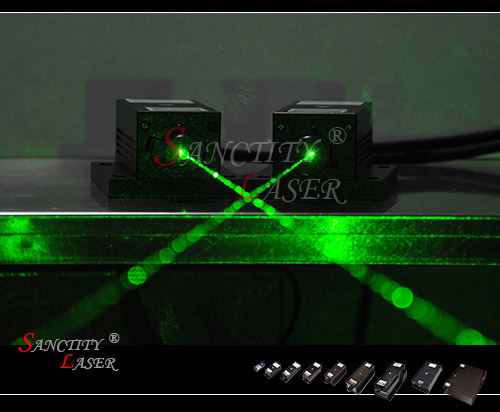

        A 556nm Laser Beam x 30multiples

This is air cooled DPSS laser with CW output at 556nm, available for a range of light show, laboratory and industrial applications. Power output ranges from 1mW to 2000mW. Features is Long lifetime, compactness size, high stability, high power, excellent laser beam quality, ruggedness and low total cost of ownership.

ORDER INFORMATION   LASER PRODUCTS CUSTOMS HS CODE: 9013200099


Cylindrical transverse mode patterns

We provide Power Stability Test Report for every laser, the Laser Beam Profile Test Report for gaussian beam lasers.
The Power and Curve Graph for Power Adjustable lasers, and if you need we also can provide Wavelength Test Report.



PRODUCTS CODE EXPLAIN

  MODEL : SSL - 556 - 0001 - XXM - D


  SSL : Shanghai Sanctity Laser
  556 : Laser wavelength of 556nm
  0001 : Laser output power of "milli watt" 0001 = 1mW 1000 = 1Watt
  XXM : 10TM of 10KHz TTL Modulation & 10AM of 10KHz Analog Modulation
  D : D : Dot Output L : Line Output F : Fiber Output LN : Low Noise
    S : Single Frequency Q : Q-Switched Pulsed
  P/N : Every laser products have a exclusive 8bit numbers
556nm DPSS Laser Type List
Wavelength Output Power (mW) Laser Type Stability
556nm
1 - 2000
CW Output Lasers 5%, 3%, 1%
556nm
1 - 1000
Low Noise Lasers 5%, 3%, 1%
556nm
1 - 2000
Fiber Output Lasers 5%, 3%, 1%
556nm
1 - 2000
Line Output Lasers 5%, 3%, 1%
